Our prototype PCB services allow customers to get printed circuit boards of innovative features within short lead time. How to decide which PCB service to pick for your project? Generally speaking, we would recommend you pick PCB prototyping service for function test on new products before putting them into a full production. For further concerns on PCB prototype PCB and standard PCB, We have drafted a comparison table about our prototyping PCBs and standard PCBs services, please visit our website for detail information.
To guarantee the prototype board quality, we follow the same standard as our standard PCBs production and manufacture it with the highest specification possible.
Features and Specifications of our Quick-turn PCBs
| Quantity | 5-100 |
| Quality | Standard IPC1 |
| Build time | 2 days-7 days |
| Layer | 1-8 |
| Material | FR4-Standard Tg 140C |
| Copper weight (finished) | 1 oz-2 oz |
| Thickness | 0.4 mm-2.0 mm |
| Min Tracing/Spacing | 5mil/5mil |
| Solder mask sides | As per the file |
| Solder mask color | Green |
| Silkscreen sides | As per the file |
| Silkscreen color | White |
| Surface finish | Hot air solder leveling (HASL) Lead-free HASL: RoHS compliant Electroless nickel/immersion gold (ENIG): RoHS compliant |

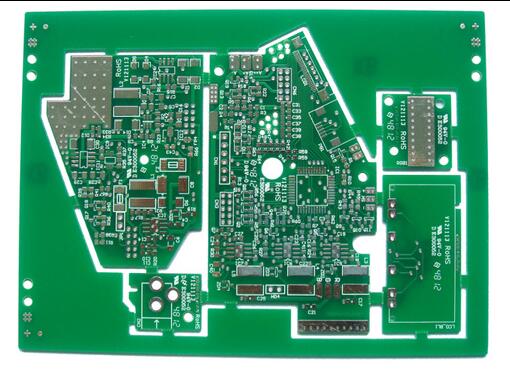

Sample PCB Prototype fabricated by China Dragon
If you have specific needs on PCB prototype which is not listed in our online quotation form, please send a quote request along with your design file to sales@pcbamfrs.com we will get back to you with a custom quote accordingly.
