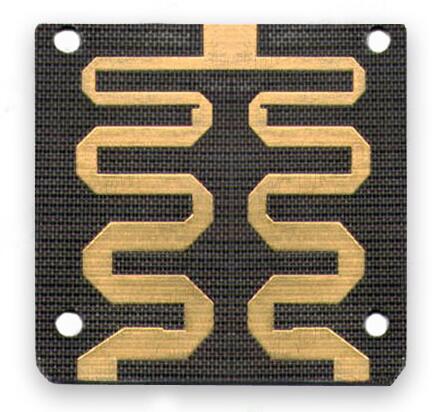

Microwave PCB


Microwave PCB

China Dragon is capable to manufacture High Frequency PCB for high-speed designs, RF, microwave and mobile applications. We understand project's success largely depends on our exact understanding your design and implement your requirements during the production, that's why our high-experienced engineering team will check each PCB design before production. We need to make sure your circuit boards are produced exactly like you expected.

Our advanced circuits board manufacturing capabilities enable you to get finest quality High Frequency PCBs done with-in your desired quantity at competitive price. Check our capabilities in the following table:

Layer 2-24
Material RO4003C, RO4350B, Ro3003, Ro3010, RT5880
PP Rogers 4450F, Domestic-(25FR), Domestic-(RF-27), Domestic-( 6700)
Thickness (finished board) 0.4 mm-5.0 mm
Max. board size 457 mm*610 mm
Copper weight 0.5 oz-2.0 oz
Surface Finish Electroless nickel/immersion gold (ENIG): RoHS compliant
Immersion silver: RoHS compliant
Immersion tin: RoHS compliant
Organic solderability preservatives: RoHS compliant
Min. Tracing/Spacing 3.0 mil/3.0 mil
Min. diameter of drill 6mil
Min. annular ring 4mil
Soldermask color Green, red, black, yellow, white, blue, green matt, black matt
Silkscreen legend color White, black, yellow
Impedance tolerance +/-10%
Peelable solder mask Yes
Gold fingers Yes
Carbon oil Yes
Countersink holes Yes








If your advanced circuits board project require specifications which are not listed in the above table, feel free to reach us through our Online Chat tool or directly email us at sales@pcbamfrs.com. We'll get back to you within one business day.
